MZ
928
TOM 2 x (10" x 7" mesh head wood shell, 2-zone)
• 1 x (12" x 12" mesh head wood shell, 2-zone)
SNARE 12" x 5" mesh head wood shell, 2-zone, with position sensing
CRASH 2 x 14" (2-zone with choke)
RIDE 16" (3-zone with choke)
HI-HAT 12" (2-zone with choke)
HH PEDAL Real hi-hat
KICK 20" x 16" mesh head wood shell
EXPANDABILITY Tom 4 • EXT 1 • EXT 2
DISPLAY 3.5" (320 x 240) color TFT LCD
MAX POLYPHONY 256
DRUM KIT 55 preset + 45 use
SOUND / VOICE 906 • User ( 128MB max. )
SONG 120 preset ( 100 MIDI + 20 audio ) + 2 users
DIMENSIONS 1900 x 1350 x 1100 mm
WEIGHT 57.3 kg
POWER DC12V
​

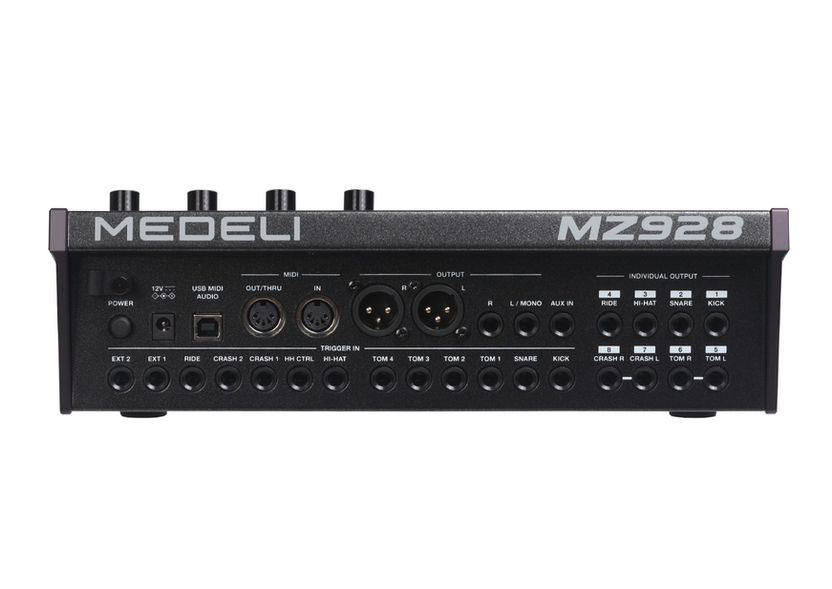

CONNECTION Bluetooth MIDI & Audio • 1 x USB-B (MIDI & Audio) • MIDI in/out • Headphone jack (1 x 1/4" + 1 x 1/8") • Aux-in jack (1 x 1/4") • Output jack (2 x 1/4" mono • 2 x XLR • 8 x direct out) TRIGGER PARA Gain • Threshold • H/R response • Cross stick level • Curve • Crosstalk • Retrig cancel • Splash sensitivity • HH close point EFFECT Kit effect (reverb, EQ, compressor, IFX) • Trigger effect (EQ, compressor) RECORD MIDI • Audio AUDIO PLAYBACK​ WAV • MP3 COACH Quiet count • Beat check • Change up METRONOME Click voice • Volume • Time signature • Interval select TEMPO 30-280 VOLUME CONTROL 4 x knobs • 8 x sliders OTHER User sample EXTERNAL DRIVE SD card (64GB max.) not included
​
​
​
