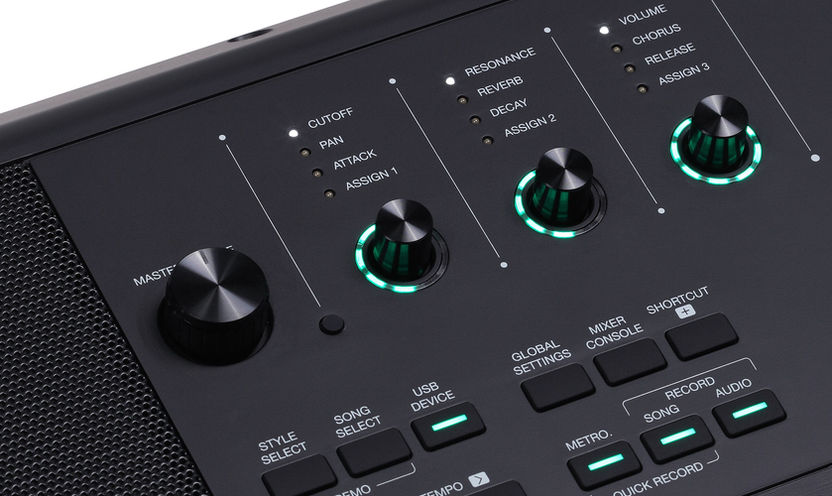

AKX10 is a stunning performance keyboard that brings countless possibilities to music making. It features 768MB user expansion memory for your choices of voices and rhythms. Creative Expression voices, created from multiple layers of articulation samples mapping to different velocity layers, together with a range of DSP effects deliver authentic nuances of instruments and amazing sonic quality. Its breathtaking design and intuitive user experience are outstanding in its class. It has breathing light that responds to your music as you play bringing exceptional showmanship in live performance like no other. Its 7” TFT touchscreen panel and joystick give you full control of making music.

AK

X10

KEYBOARD 61 keys (touch-sensitive)

DISPLAY 7” touch screen

MAX POLYPHONY 256

SOUND / VOICE 1100 + 256 GM2 + 500 users (max)

STYLE 280 + 1000 users  (max.)

SONG 3

MUSIC LIBRARY 3 songs • Album (80 + 1000 users max.)

AMPLIFIER 2 x 15 watt • 2 x 25 watt

SPEAKER 2 x 12 cm • 2 x 3 cm

DIMENSIONS 1007 x 392 x 130 mm

WEIGHT 9.4 kg

POWER DC 15V

CONNECTION Bluetooth MIDI & Audio • 1 x USB-A (Device)  • 1 x USB-B (MIDI & Audio) • MIDI in / out • 1 x 1/4” headphone jack • 2 x 1/4” mono input jacks •  1 x 1/4” L / L+R output jacks • 1 x 1/4” R output jacks • 1 x 1/4” microphone jack • Pedal (sustain / volume) LAYER / SPLIT L • R1 • R2 • R3 STYLE CONTROL Start / Stop • Sync start / Sync stop • Intro 1 / Ending 1 • Intro 2 / Ending 2 • Intro 3 / Ending 3 • Main A / Fill in A • Main B / Fill in B • Main C / Fill in C • Main D / Fill in D • Break • Auto fill in • Chord on / off • Fade in / out •  Q.S. link STYLE CREATOR Yes CHORD TYPE 39 REVERB 45 types • 30 users CHORUS 76 types • 30 users EFFECT Channel EQ • Compressor • D.A.S.  • IFX (48 preset + 30 users) • Mic effects (EQ, compressor, 47 DSP effects, 3 vocoder, 3 vocal harmony) MASTER EQ 5 + 30 users MIXER Yes SEQUENCER 500 user songs (max.) (16 tracks) PERFORMANCE MEMORY 8 x 200 banks • Lock Q.S. / O.T.S. Yes PERFORMANCE ENHANCEMENT Arpeggiator • Harmony • Slicer AUDIO PLAYBACK MP3 • WAV • AAC • Vocal remover • Audio tempo • Audio transpose AUDIO RECORDER MP3 • WAV (44.1KHz / 16 bit) SCORE DISPLAY with APP ASSIGNABLE CONTROLLER 2 x pedals • 3 x knobs • 3 x buttons • 1 x joystick PITCHBEND Yes MODULATION Yes PITCH ADJUSTMENT Transpose • Octave • Tuning • Scale tuning (9 + 30 users) METRONOME Yes TEMPO 30-280 • Tap tempo OTHER CONTROL Touch sensitive • Sustain • Sound edit • Chord reference • Bluetooth audio • Bluetooth MIDI •  Phrase pad  (4 x 180 banks + 500 users max.) • Internal storage (approx. 768MB sample expansion) EXTERNAL DRIVE USB (128G max)
