AK603

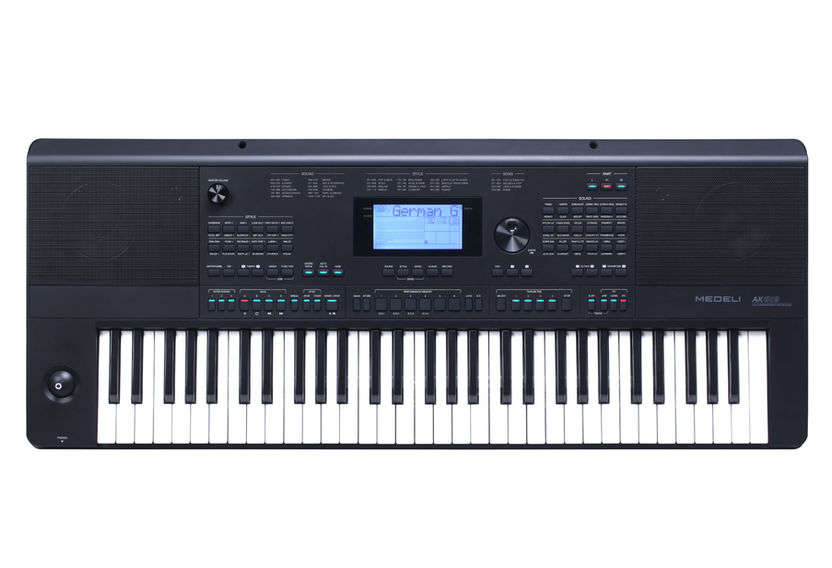

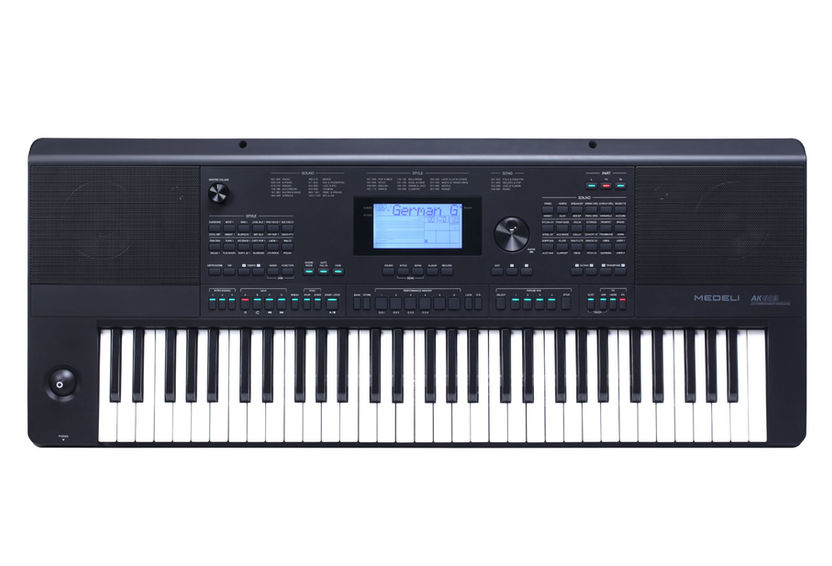

The Medeli AK603 accompaniment keyboard is the gateway for players eager to explore the stage or studio. A variety of Sounds, accompaniment Styles, and powerful features combine in a versatile instrument worth way more than the price of admission.

VIDEO

VIDEO

features

FEATURES

61 Touch sensitive keys that feel natural to play and allow you to express your musical ideas intuitively and accurately.


256 notes of polyphony make the AK603 able to support your music's heaviest demands.

750 preset sounds already unlock a world of creative potential, then Synth Mode takes it one step further giving you access to edit presets to create as many as 50 custom user Sounds.


280 Accompaniment Styles let you perform music in a variety of genres, controlling your very own backing band with the notes you play. Use the built-in song recorder to capture the full performance of your next single!

The assignable Joystick controller opens expressive possibilities with pitch bend and modulation controls plus a selection of user-assignable controls.

demos

DEMO SONGS

AK603: DEMO 1
00:00 / 01:24
AK603: DEMO 2
00:00 / 03:29
SPECS

SPECIFICATIONS

KEYBOARD

61 keys (professional touch sensitive keys PTK III)

DISPLAY

Backlit LCD

MAX POLYPHONY

256

SOUND / VOICE

750 + 50 users

STYLE

280 + 50 users + 50 expansion styles

MUSIC LIBRARY

90 songs • 50 album

AMPLIFIER

2 x 15 watt • 2 x 25 watt

SPEAKER

2 x 3 cm • 2 x 12 cm

DIMENSIONS

971 x 390 x 130 mm

WEIGHT

9.9 kg

POWER

DC 15V

CONNECTION

1 x USB-A (Device) • 1 x USB-B (MIDI & Audio),

Headphone jack (1 x 1/4”) • Input jack (1 x 1/4”),

Output jack (1 x 1/4” L/mono • 1 x 1/4” R),

Pedal (sustain / expression)

LAYER / SPLIT

L • R1 • R2

STYLE CONTROL

Start / Stop • Sync start / Sync stop,

Intro 1 / Ending 1 • Intro 2 / Ending 2 • Intro 3 / Ending 3,

Main A / Fill in A • Main B / Fill in B • Main C / Fill in C • Main D / Fill in D,

Break • Auto fill in • Chord on / off • Fade in / out •  Q.S. link

STYLE CREATOR

Import from USB flash drive

CHORD TYPE

39

REVERB

32 types

CHORUS

64 types

EFFECT

IFX (24 preset) • D.A.S.

MASTER EQ

5 types

MIXER

Yes

SEQUENCER

5 user songs (16 tracks)

PERFORMANCE MEMORY

6 x 32 banks • Lock

Q.S. / O.T.S.

Yes

PERFORMANCE ENHANCEMENT

Arpeggiator • Harmony

AUDIO PLAYBACK

MP3 • WAV

AUDIO RECORDER

MP3 • WAV

SCORE DISPLAY

with APP

ASSIGNABLE CONTROLLER

2 x pedal • 1 x joystick

PITCHBEND

Yes

MODULATION

Yes

PITCH ADJUSTMENT

Transpose • Octave • Tuning

METRONOME

Yes

TEMPO

5 - 320 • Tap tempo

OTHER CONTROL

Touch sensitive • Sustain • Sound edit • Phrase pad  (4 x 100 banks)

EXTERNAL DRIVE

USB (256GB max) not included

AVAILABLE COLOR

Standard Black
